Update supermicro X11SSV-M4F firmware BIOS under Linux with the SUM cli

Author:

main menu

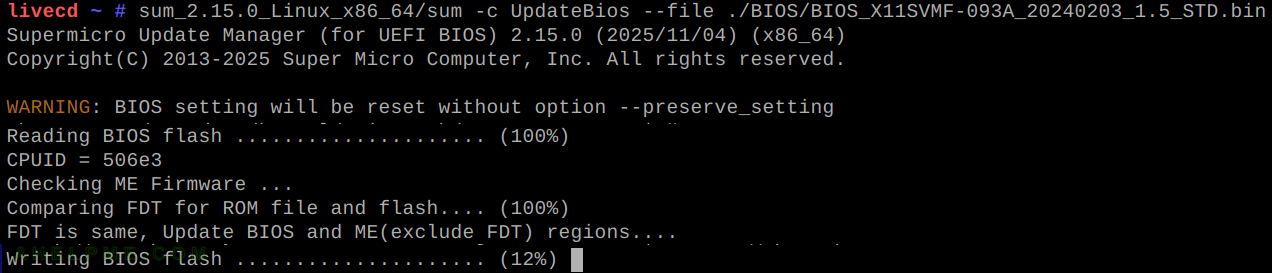

Writing BIOS flash

This article shows how to update the old hardware with the official Supermicro Update Manager (SUM) in 2026. The hardware is old and sometimes it may not boot with the new kernels because of buggy BIOS or firmware, which might be fixed in the new or the latest BIOS firmware (which firmware may be 3-5 years old, but still it is good to update if the server is not with the latest/last BIOS firmware).

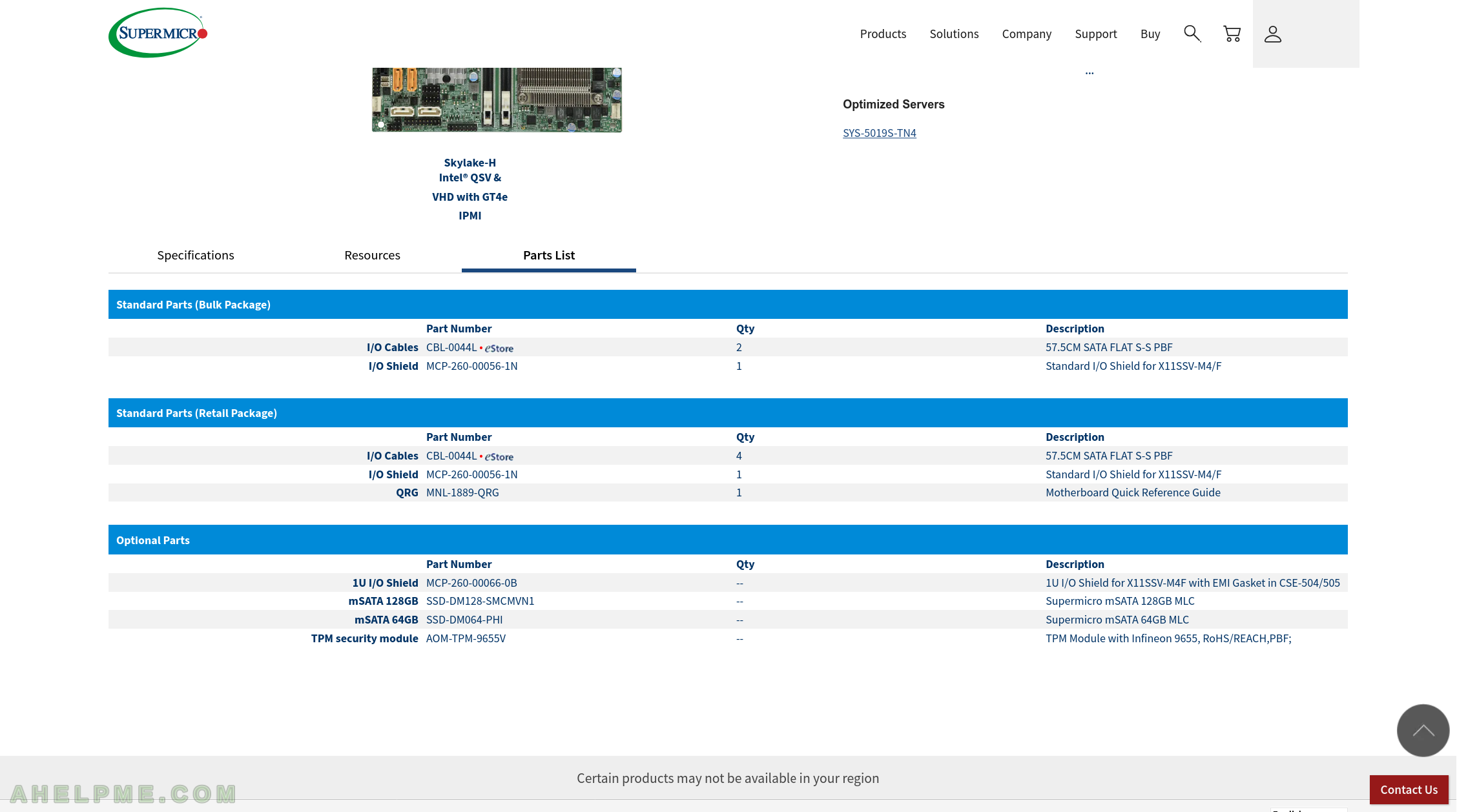

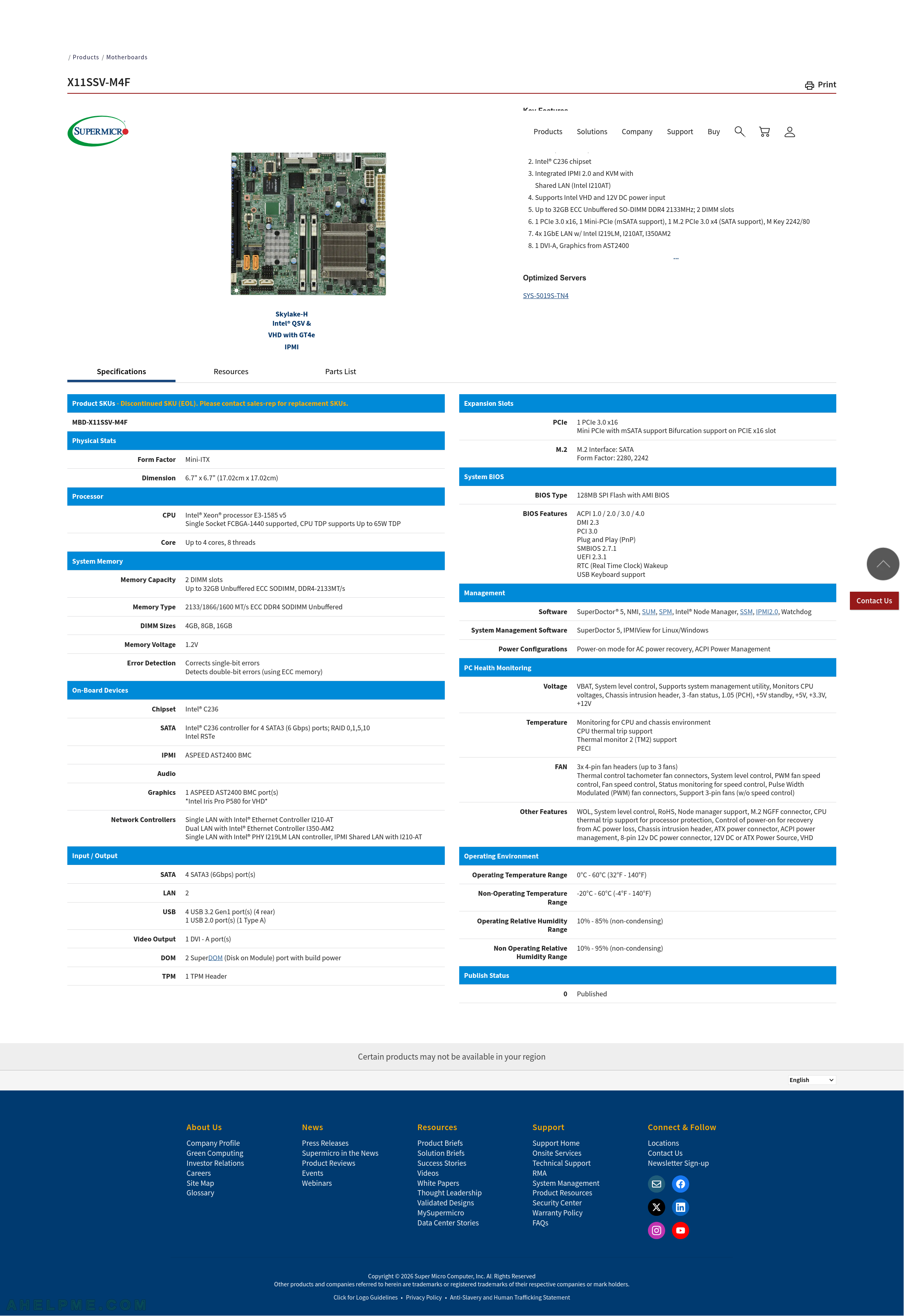

product: X11SSV-M4F is a discontinued SKU, but at preset, the January 2026, it is still in the Supermicro site – https://www.supermicro.com/en/products/motherboard/x11ssv-m4f and all BIOS firmwares could be downloaded from the official site.

  • X11SSV-M4F has C236 chipset (supports GPU in the CPU)

The chipset also could be listed with lshw command. This is an updated version with the latest SUM and latest BIOS firmware of the X11SSV-M4F to the 8 years old article on the same subject – Update supermicro server’s firmware BIOS under linux with the SUM cli

main menu
IPMI web interface
The current BIOS version is really old from 2018.

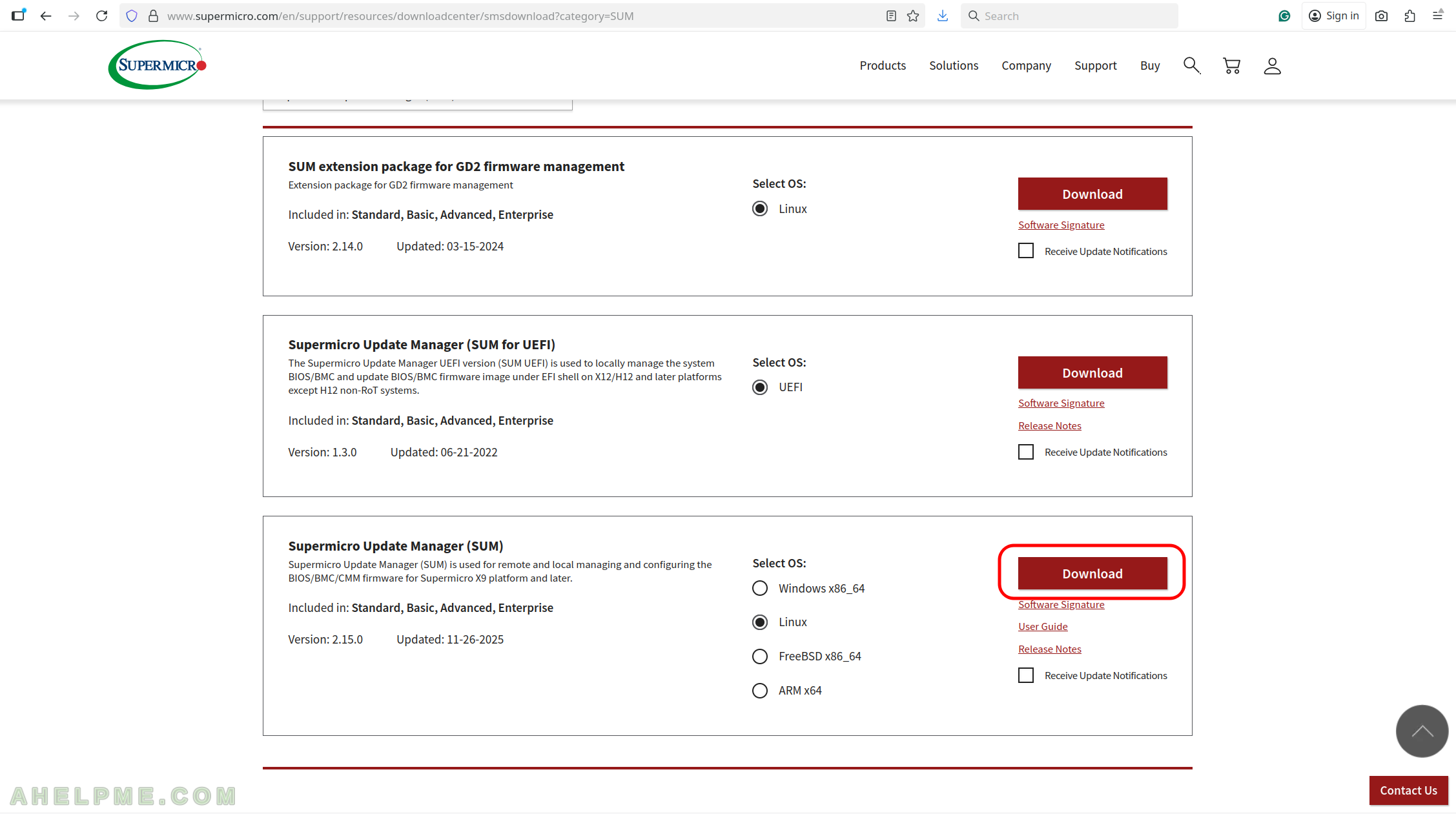

STEP 1)Download the SUM (Supermicro Update Manager)

Download the SUM (Supermicro Update Manager) – https://www.supermicro.com/en/support/resources/downloadcenter/smsdownload?category=SUM (More information in https://www.supermicro.com/en/solutions/management-software/supermicro-update-manager).

main menu
Supermicro Update Manager

All included files in the packages are listed in the Bonus 2 section. It includes also the sum command usage help output.

STEP 2) Download and unpack the BIOS zip file

The BIOS firmware zip file still could be found on the official Supermicro site under section “Resources” – https://www.supermicro.com/en/products/motherboard/x11ssv-m4f

main menu

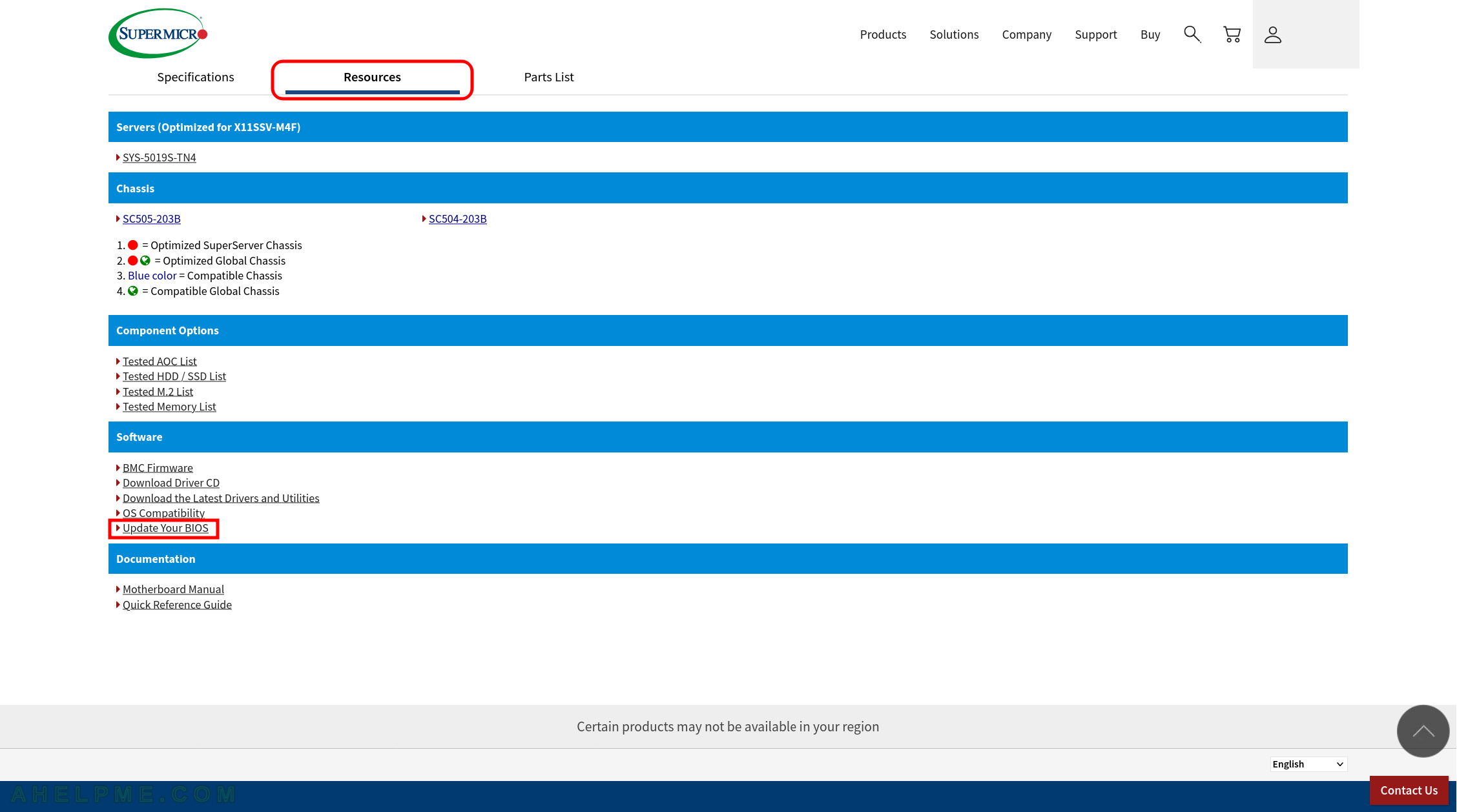

web page BIOS file download

[root@srv1 ~]# tar xf sum_2.15.0_Linux_x86_64_20251104.tar.gz
[root@srv1 ~]# unzip ./BIOS_X11SVMF-093A_20240203_1.5_STD.zip
Archive:  ./BIOS_X11SVMF-093A_20240203_1.5_STD.zip
  inflating: AFUDOSU.SMC
  inflating: BIOS_X11SVMF-093A_20240203_1.5_STD.bin
  inflating: CHOICE.SMC
  inflating: FDT.smc
  inflating: FLASH.BAT
  inflating: Readme for UP X11 AMI  BIOS.txt

First, unpack the SUM utility and then the BIOS file. The BIOS binary file is BIOS_X11SVMF-093A_20240203_1.5_STD.bin.

STEP 2) Flash the BIOS file with sum cli.

Here you can see what to expect flashing the BIOS firmware.

[root@srv1 sum_2.15.0_Linux_x86_64]# ./sum_2.15.0_Linux_x86_64/sum -c UpdateBios --file ./BIOS_X11SVMF-093A_20240203_1.5_STD.bin
Supermicro Update Manager (for UEFI BIOS) 2.15.0 (2025/11/04) (x86_64)
Copyright(C) 2013-2025 Super Micro Computer, Inc. All rights reserved.

WARNING: BIOS setting will be reset without option --preserve_setting
Reading BIOS flash ..................... (100%)
CPUID = 506e3
Checking ME Firmware ...
Comparing FDT for ROM file and flash.... (100%)
FDT is same, Update BIOS and ME(exclude FDT) regions....
Writing BIOS flash ..................... (100%)
Verifying BIOS flash ................... (100%)
Checking ME Firmware ...
Putting ME data to BIOS ................ (100%)
Writing ME region in BIOS flash ...
 - Update skipped for FDR when ME is not in Manufacturing Mode!!
   BIOS update continues...
 - Updated Recovery Loader to OPRx
 - Updated FPT, MFSB, FTPR and MFS
 - ME Entire Image done
WARNING:Must power cycle or restart the system for the changes to take effect!
[root@srv1 sum_2.15.0_Linux_x86_64]# reboot

During the BIOS flashing your console could have seemed unresponsive for several minutes, but it is OK, the flash process is about 10 minutes. Then reboot and wait for several automatic resets of your system and after that when your system reaches the OS boot you should reboot again and reset your BIOS to the optimized defaults and then you can tune it as it was before.

main menu

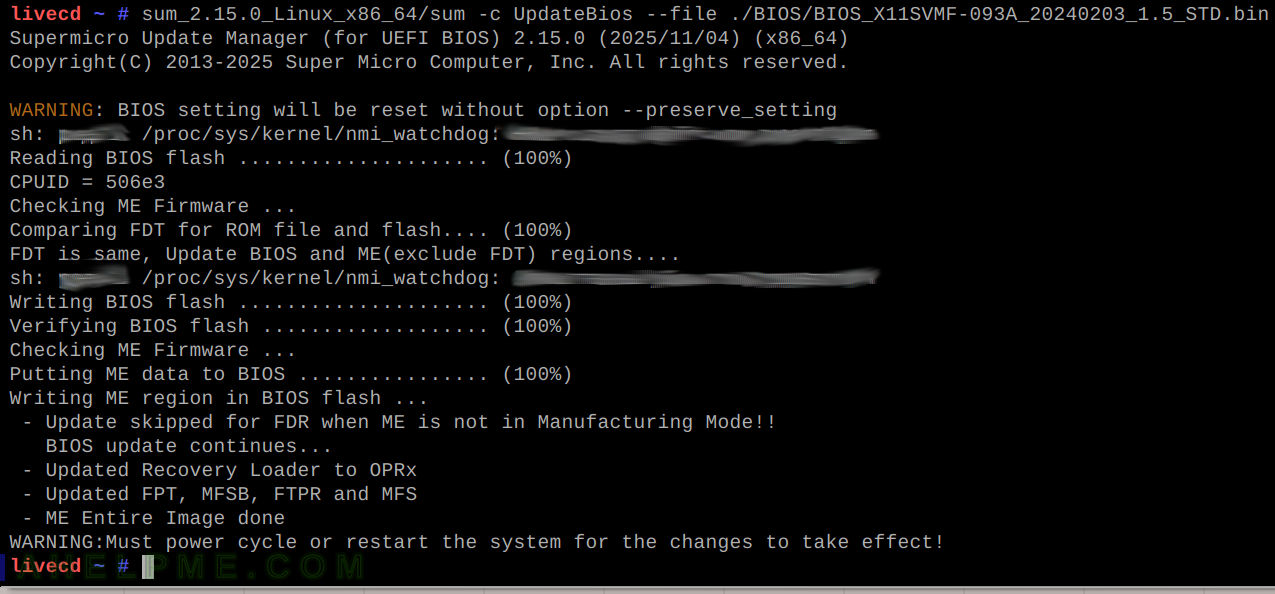

SUM update BIOS

In some rear cases you could receive “Critical Error” – “FDT is different.” you should reboot and repeat the procedure, more information here – Update supermicro server’s firmware BIOS under linux with the SUM cli

The BIOS formware is successfully flashed and the server is rebooted in BIOS.

main menu
BIOS Main menu

Bonus

Some commands to find the exact information for the server motherboard.

[root@srv1 ~]# lspci |grep -i c236
00:1f.0 ISA bridge: Intel Corporation C236 Chipset LPC/eSPI Controller (rev 31)

Bonus 2

Supermicro Update Manager (SUM) 2.15 files and SUM command usage and options.
